(a)

STM ID  AZ/RAN TVS MESO POSH/POH/MX SIZE VIL DBZM  HT  TOP  FCST MVMT
    V8   82/ 17 YES  YES   80/100/ 2.25    48  64 34.5 >36.5  269/ 36
    M7  349/ 26  NO  YES   70/100/ 1.50    66  65 21.3 >43.8  267/ 29
    V1   61/ 27  NO  YES   30/100/ 1.00    34  57 16.2  49.4  251/ 50
    J2  356/ 28  NO  YES   40/100/ 1.00    29  61 13.3  36.3  275/ 44
    J5   72/ 18  NO   NO   90/ 90/ 2.25    50  66 23.3  26.7  266/ 30
    M1   41/ 78  NO   NO   60/100/ 1.25    41  59 24.3  49.0    NEW
    W1  303/  8  NO   NO    0/  0/ 0.00     5  50 15.5 >15.6    NEW
    G3    5/ 13  NO   NO   70/ 80/ 1.75    26  65 20.7 >26.6    NEW
    C8    1/ 18  NO   NO   60/ 70/ 1.25    42  66 12.1  23.7  236/ 39
    L2  331/ 62  NO   NO   40/100/ 1.00    41  60 18.7  38.6  239/ 38
(b)

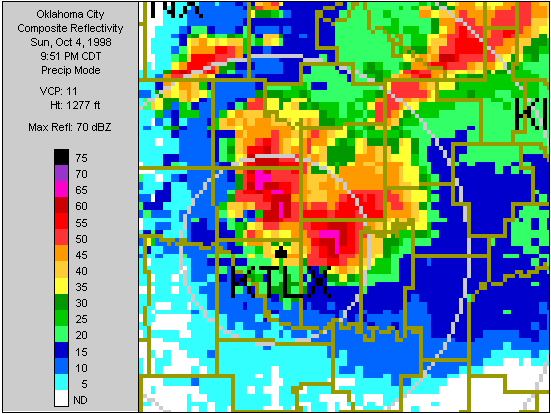

Figure 1.    Composite reflectivity (a) and an excerpt from the accompanying storm attribute table (b) from KLX at 0251 UTC on October 4, 1998. Radar image is the depiction by NIDS viewer, version 1.0 and has been zoomed to focux on he storm (V8) just east of the radar site. OK-FIRST users with this early version of the software could have viewed the image in one window and the attribute table in a second window to manually match attributes with the corresponding storm.
